Galletto 1260 + Brava 1.6

[Ospite drv]

Hello,

in first words I have to say that I do not speak Italian well, so i try to write in English, Sorry for that, I try to use very simple English to describe my problem.

I Have a Fiat Brava 1.6 '99 with Magneti Marelli IAW 49F B6 and I would like to learn basics of chiptunning for my own use. I Bought a Galletto 1260 and I tried to read content of my ECU, but there is a problem:

I read some materials and I found information about that ECU needs short circuit on pins to get into boot mode - read & write mode.

Nowhere I can't find which pins i should short circuit and to what and what resistor i need to enable boot mode in that ECU.

If someone has a breakdown of these pins I would be grateful if shares that information with me.

Best regards from Poland.

Ps. Also English dosn't my native languge, sorry for that.

[elettronicaautronica]

Hi drv, welcome in ecu-tuning, the fast solution to read and write this ecu, is to desolder the 29f010 read, modify, and write, and solder to pcb... The galletto clone is not a good serial...

[Ospite drv]

Why it's no good? I ask because i don't want to damage that 29f010 at desolder from PCB. Solution with Galletto I think it's safer to me.

In datasheet of 29f010 there is ~W pin, but there is description that he only accept 5V, not 12V.

It's possible to activate it from outside cover of ECU?

best regards

[elettronicaautronica]

Your serial is not reliable, I recommend to unsolder the 29F010 because simple task.

Remove flash EPROM, and read and write with willem or Wellon or beeprog or any interface that allow writing and read flash ....

With flux desoldering the flash is fast and easy for my... use the airflow not over 380° for 5 seconds to not damage the components...

[infineon]

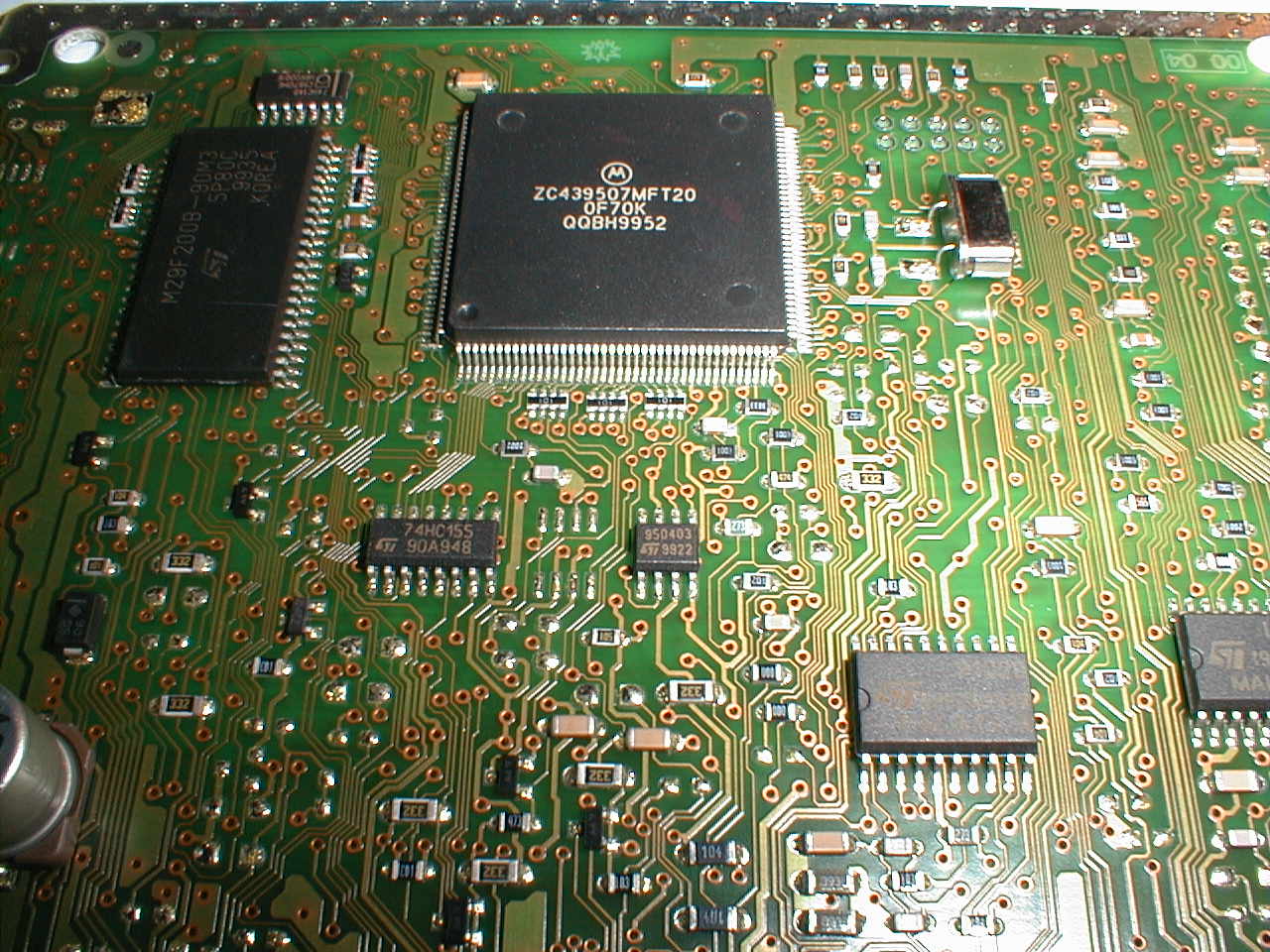

The Marelli engine control unit 49F is equipped with memory 29f200. If you can not read from socket 3-pin, try to dismantle it and read it on the bench.

[Ospite drv]

My hand is uncertain so i would like to try it from outside with galletto, dismantle i think i can do it, but put it back - not for me.

For test I can buy a second ECU but again 3 pin socket is safer to me.

So if exist an option for do it, i would like to try it.

Best Regards

[infineon]

Disassembling the unit, connect i12v, negative, and k-line and tries to counter.

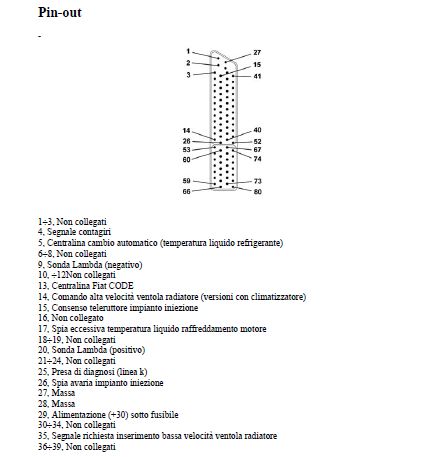

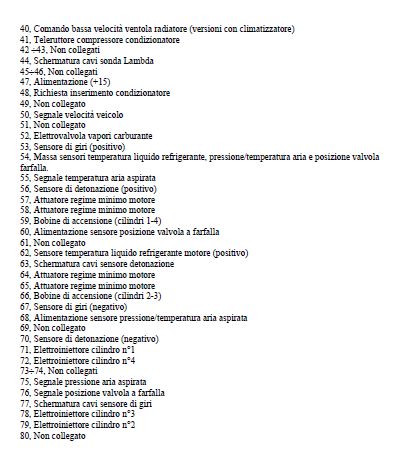

I put the pin out

[Ospite drv]

infineon, Can you expand your idea?

Best Regards

[Ospite drv]

Another Question, IT's possible to Enable Serial Programing in that ECU?

Best Regards
